Lupa Digital

Arquivo.pt Awards 2025

Hugo Veríssimo

124348

Lupa Digital

Lupa Digital is an initiative that applies AI and data mining to large-scale journalistic content, exploring the evolving news landscape through the lens of metajournalism.

  • Identify and classify news articles across a wide range of domains.

  • Extract relevant information and preprocess data to support analysis.

  • Detect trends and reveal patterns across topics, sources, and time periods.

Transform large volumes of archived news into structured, analyzable datasets, enabling a deeper understanding of entities, events and themes.

Data Pipeline
& Methodology

News URL Harvesting

api requests
github.com/LupaDigital25/data-extraction/blob/main/newsUrls.ipynb

Example: API Request

Sample query:

https://arquivo.pt/wayback/cdx \
?url=www.rtp.pt/noticias/cultura* \
&output=json \
&filter==mime:text/html \
&fields=url,timestamp

Sample output:

{"url": "https://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/companhia-nacional-abre-temporada-com-obra-inspirada-na-opera-de-henry-purcell_1033406", "timestamp": "20171016065533"}
{"url": "http://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/companhia-nacional-de-bailado-abre-temporada-com-peca-pedro-e-ines_865965", "timestamp": "20151014181241"}
{"url": "http://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/companhia-nacional-de-bailado-apresenta-quatro-pecas-de-coreografos-do-seculo-xx_893880", "timestamp": "20160206045955"}
{"url": "https://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/companhia-nacional-de-bailado-danca-com-akram-khan_982957", "timestamp": "20170214215117"}
{"url": "https://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/companhia-nacional-de-bailado-estreia-nova-peca-de-olga-roriz-para-celebrar-saramago_1407664","timestamp": "20160229051915"}
{"url": "https://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/competicao-internacional-de-danca-genee-da-royal-academy-pela-primeira-vez-em-portugal_1008253", "timestamp": "20170617061712"}
{"url": "https://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/composicao-a-toa-de-miguel-bastos-vence-concurso-internacional-da-povoa-de-varzim_1015347", "timestamp": "20170717231439"}
{"url": "https://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/compositor-joao-pedro-coimbra-apresenta-projeto-vibra-e-o-seu-album-de-estreia-em-junho_1201778", "timestamp": "20200130212156"}
{"url": "http://www.rtp.pt/noticias/cultura/noticias/cultura/artigos/comunidade-chinesa-ja-festeja-o-ano-do-macaco_892519", "timestamp": "20160202050114"}
github.com/LupaDigital25/data-extraction/blob/main/newsUrls.ipynb

Data Extraction and Mining

api requests

To support this pipeline, a combination of tools and techniques was used…

github.com/LupaDigital25/data-extraction/blob/main/dataExtraction.py

Data Extraction and Mining

Archived news pages were processed in chunks of 10,000, with checkpoints saved for fault tolerance and resumability. Used:

  • PySpark for parallelized processing across large datasets

  • BeautifulSoup for HTML parsing and web scraping

  • BloomFilter to efficiently detect and skip duplicate articles

  • ML model to classify documents as news or non-news

  • TextBlob and VADER for sentiment analysis

  • spaCy for lemmatization, tokenization, and NER for topic extraction

  • Probabilistic counters for scalable topic frequency estimation

github.com/LupaDigital25/data-extraction/blob/main/dataExtraction.py

Example: Web Scraping

example

Cenário de saída da Grécia do euro está de regresso - União Europeia - Jornal de Negócios Cotações Mercados Análise Fundamental Técnica Portfolio Gestor Accões Favoritas Estatísticas Taxas de Juro Câmbios Subscrever assinar Login Registe-se \xa0Cenário de saída da Grécia do euro está de regresso União Europeia Cenário de saída da Grécia do euro está de regresso O provável novo embaixador dos EUA junto da União Europeia antecipa que a Grécia saia do euro dentro de um ano ou ano e meio. Já o ministro alemão das Finanças voltou a alertar para esse risco caso o Governo grego não aplique as reformas tal como acordadas a…

github.com/LupaDigital25/data-extraction/blob/main/dataExtraction.py

Example: Data Mining

data_mining
github.com/LupaDigital25/data-extraction/blob/main/dataExtraction.py

Topic Standardization

Number of unique topics:  1457234
+-------------------------+
|value                    |
+-------------------------+
|P2 Ípsilon Ímpar Fugas P3|
|laboratório              |
|galp                     |
|Galp                     |
|O Banco de Portugal      |
|Saúde   Covid-19         |
+-------------------------+

Problems:

  • Inconsistent casing (galp vs Galp)

  • Leading definite articles (O Banco de Portugal)

  • Multiple concepts grouped into a single topic (Saúde Covid-19)

github.com/LupaDigital25/data-preprocessing/blob/main/dataPrep%20topicEDA.ipynb

Topic Standardization

Idea: Map each topic to a list of terms for normalization

# split topics with more than 2 spaces
df = df.withColumn(
  "tokens",
  F.split(F.col("value"), " {2,}")
)


# standardize topics using mapping
# either using a portuguese dictionary (Natura Dictionary)
dicitionary = spark.read.text("wordlist_utf8.txt")
...
word_map_broadcast = spark.sparkContext.broadcast(word_map)

# or the most common representation ("galp" VS "Galp")
tokens_df = tokens_df \
            .withColumn("std_token", F.lower(F.col("token"))) \
            .groupBy("std_token", "token") \
            .agg(F.count("*").alias("count")) \
            .withColumn("rank", F.row_number().over(window_spec)) \
            .filter(F.col("rank") == 1) \
            .orderBy("std_token") \
            .select("std_token", "token", "count")
...


# split topics into possible subtopics
def split_topics(token):
  """
  ex.:
    Banco de Portugal -> banco, Portugal, Banco de Portugal
    Leonor Pereira -> Leonor Pereira
    laboratório -> laboratório
    EDP Gás -> EDP, gás, EDP Gás
  """
  ...

df = df.rdd.flatMap(
    lambda row: [[row[0], split_topics(row[1])]]) \
    .toDF(["topic", "token"])


# remove invalid topics using regex
def date_detection(token):
    months = bool(re.search(r"\b(?:Jan|Fev|Abr|Mai|Jun|Jul|Ago|Set|Out|Nov|Dez)\b", token))
    march = bool(re.search(r"\b(?:\d{1,2} Mar|Mar \d{2,4})\b", token))
    months2 = bool(re.search(r"^(janeiro|fevereiro|março|abril|maio|junho|julho|agosto|setembro|outubro|novembro|dezembro)\b", token, flags=re.IGNORECASE))
    dateD = bool(re.search(r"\b(Janeiro|Fevereiro|Março|Abril|Maio|Junho|Julho|Agosto|Setembro|Outubro|Novembro|Dezembro)[ ]?\d{2,4}\b", token, flags=re.IGNORECASE))
    dateY = bool(re.search(r"\b\d{1,2}(?:\s+de)?\s+(janeiro|fevereiro|março|abril|maio|junho|julho|agosto|setembro|outubro|novembro|dezembro)\b", token, flags=re.IGNORECASE))
    days = bool(re.search(r"\b(segunda-feira|terça-feira|quarta-feira|quinta-feira|sexta-feira|sábado|domingo)\b", token, flags=re.IGNORECASE))
    hours = bool(re.search(r"\b\d{1,2}:\d{2}\b", token)) or bool(re.search(r"\b\d{1,2}h\d{2}\b", token))
    minutes = bool(re.search(r"\b\d{1,2}m\d{2}\b", token))
    return months or march or months2 or dateD or dateY or days or hours or minutes

def invalid_tokens_detection(token):
    return date_detection(token) or ...

df = df.rdd.flatMap(
    lambda row: [(row[0], [token for token in row[1] if not invalid_tokens_detection(token)])])


# among other transformations
# e.g.: invalid characters, ...

df.write.mode("overwrite").json("topics.json")
github.com/LupaDigital25/data-preprocessing/blob/main/dataPrep%20topicPrep.ipynb

Topic Standardization

+-------------------------+--------------------------------------------------+
|token                    |topic                                             |
+-------------------------+--------------------------------------------------+
|laboratório              |[laboratório]                                     |
|galp                     |[Galp]                                            |
|Galp                     |[Galp]                                            |
|O Banco de Portugal      |[banco, Portugal, Banco de Portugal]              |
|Saúde   Covid-19   COVID |[Saúde, Covid-19, Covid, Saúde   Covid-19   COVID]|
|José Mourinho            |[José Mourinho]                                   |
|11 de janeiro            |[]                                                |

\(\ \)

New issues introduced during processing:

|António Costa            |[António, costa, António Costa]                   |
|CHEGA                    |[chega]                                           |
|25 de abril              |[]                                                |
|Revolução de 25 de abril |[Revolução, Revolução de 25 de abril]             |
+-------------------------+--------------------------------------------------+
github.com/LupaDigital25/data-preprocessing/blob/main/dataPrep%20topicPrep.ipynb

Data Post-processing

  • Remove duplicated links

  • Replace original topics with the cleaned versions

  • Generate a significant token column: lemmatized, lowercased, accent-free, and with >4 mentions (for topic-based querying)

root
 |-- timestamp: integer (nullable = true)
 |-- source: string (nullable = true)
 |-- archive: string (nullable = true)
 |-- id: integer (nullable = true)
 |-- probability: float (nullable = true)
 |-- keywords: map (nullable = true)
 |    |-- key: string
 |    |-- value: integer (valueContainsNull = true)
 |-- sentiment: double (nullable = true)
 |-- significant_keywords: array (nullable = true)
 |    |-- element: string (containsNull = true)
github.com/LupaDigital25/data-preprocessing/blob/main/dataPrep.ipynb

Data Post-processing

api requests
github.com/LupaDigital25/data-preprocessing/blob/main/dataEDA.ipynb

Results

Main Results

api requests

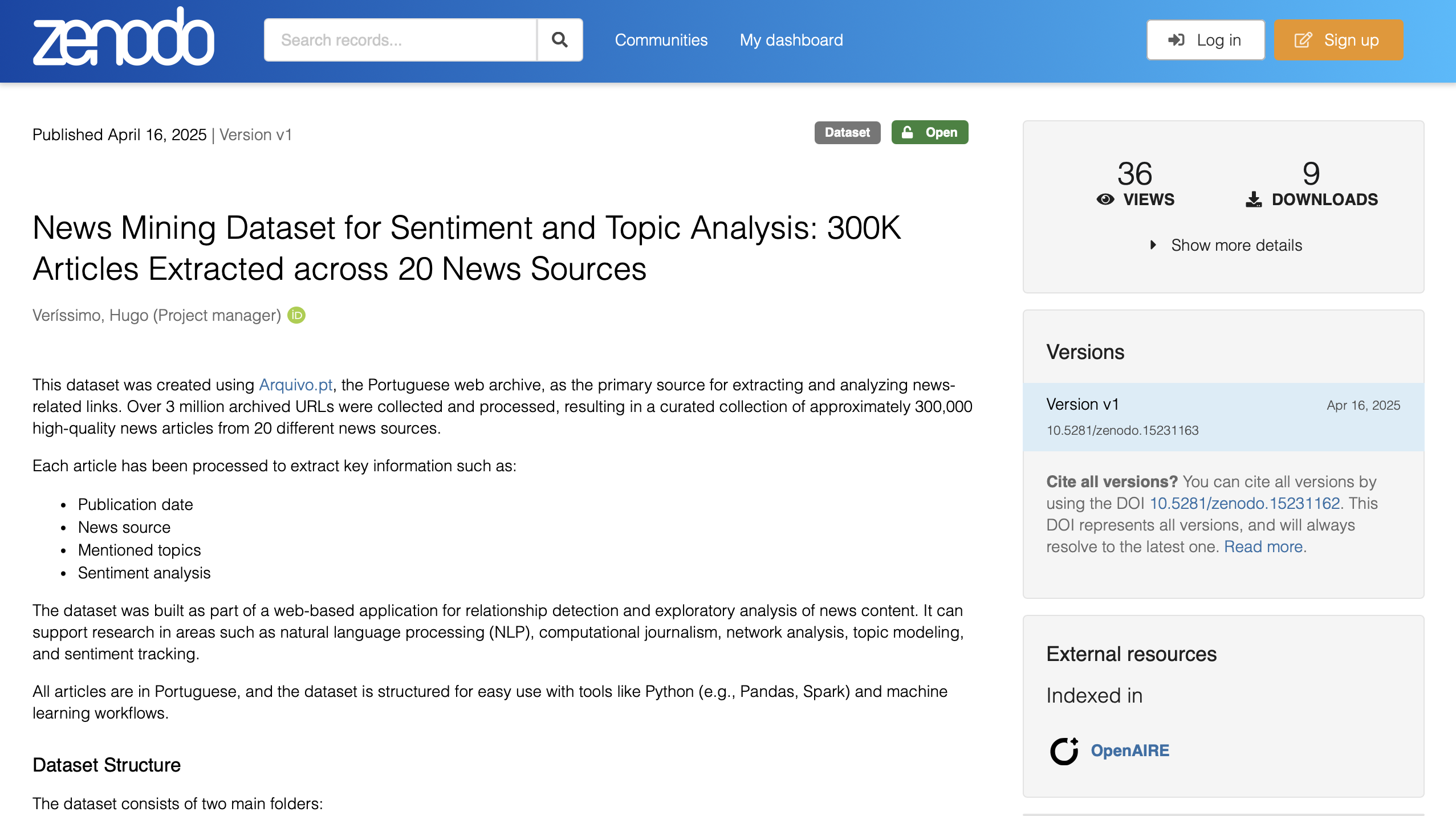

Dataset

dataset screenshot

Available at 10.5281/zenodo.15231163

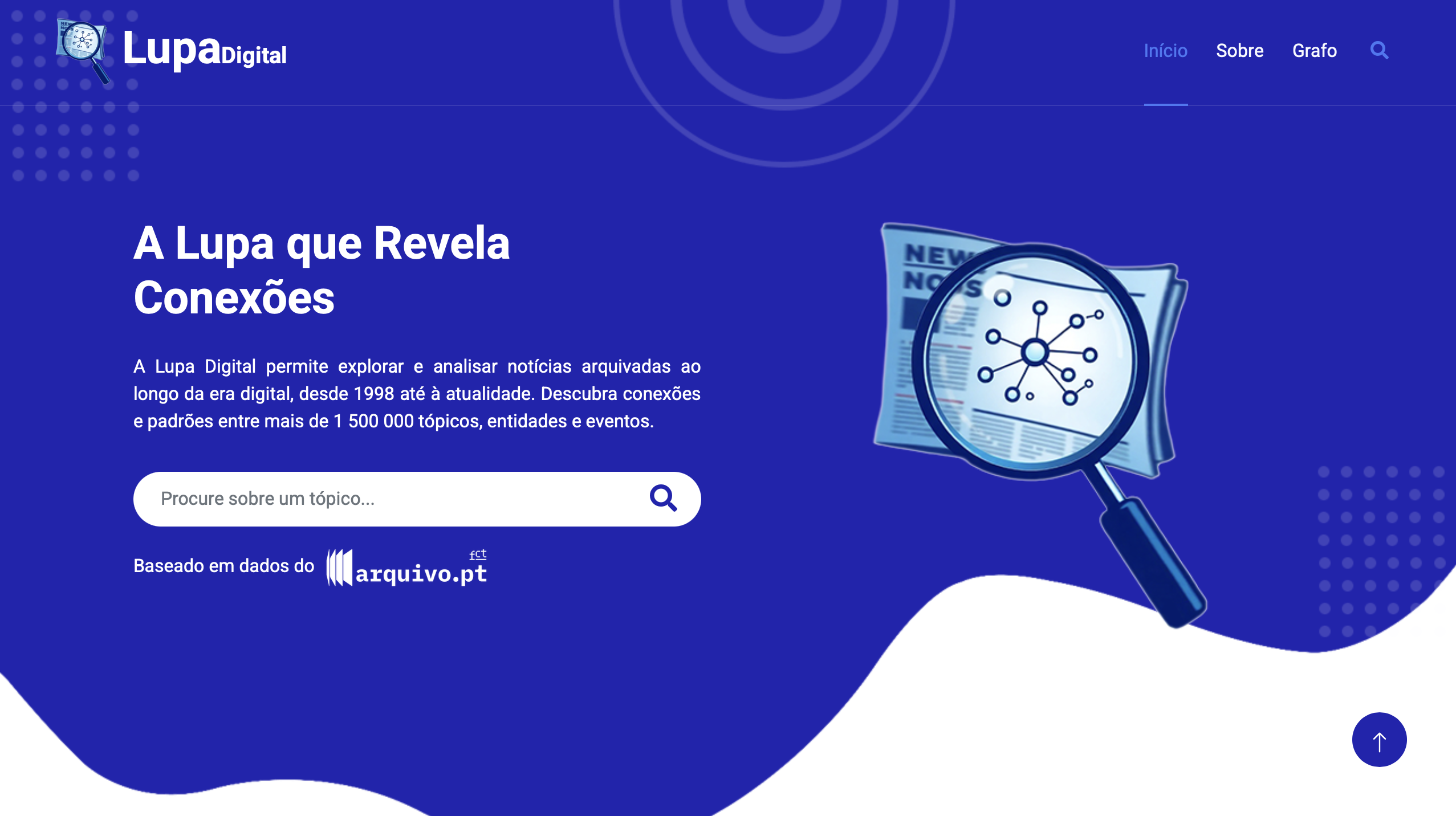

Web Application

app screenshot

Available at lupa-digital.pt

Web Application - Workflow

app workflow
github.com/LupaDigital25/app-docker/blob/main/app/app.py
